Description

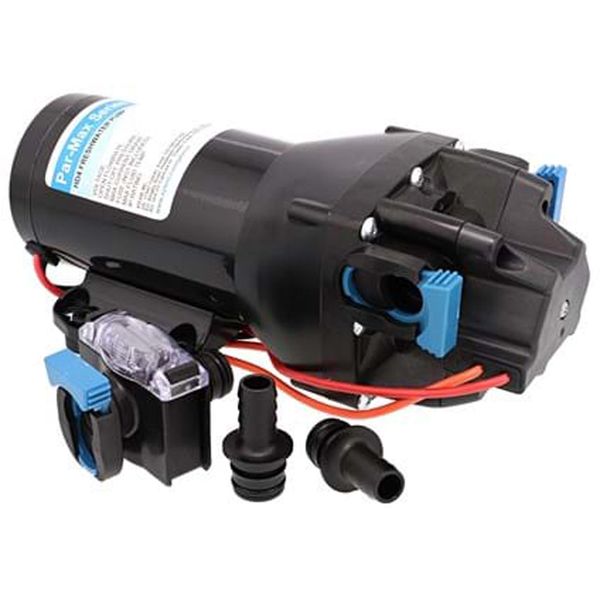

Jabsco Q401J-112S-3A freshwater delivery pump Par Max HD4 is an efficient, self-priming pump with high flow output for serving four or more outlets. The Jabsco multi-diaphragm design self primes to 2.4m vertical lift and can run dry without damage. Supplied with 40-mesh inline Quick Connect strainer.

The Jabsco pump can be used for the following applications: Washdown, Livewell Circulation, Freshwater Delivery (galley, shower, washing machine), Shower Drain, Baitwell, General Purpose and Auxiliary Bilge.

This drinking water pressure pump replaces the following Jabsco pressure pumps: 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 and 82600‐0392.

Jabsco Pump Spares for Q401J-112S-3A:

# | Item | Part Number

1 | Port Clips | 30647‐1000

2 | Switch Kit | 16470‐0025

3 | Check Valve Assembly | 18753‐0731

4 | Diaphragm & Drive Assembly | 18753‐0730

5 | Baseplate & Mounting Feet | 18753‐0729
